Observing the Earth with the eyes of a satellite: detecting burned areas from space

Introduction

I’ve always been fascinated by the world around us, and the many ways we try to understand it. We experience reality from different perspectives: through the formal language of math and physics, or by capturing snapshots of it in a photography or a painting. In recent years we saw a massive improvement in the technology we have at hand, in particular algorithms and computation power. A natural question may arise: how can we introduce this technology in the loop and use it to observe and assist the planet we are living on?

This article is the first in a series documenting my journey in understanding Earth observation techniques, where I explore how we can leverage algorithms, math, and photography to help us better understand our environment. This first part will mainly cover definition, data retrieval and interpretation, and some basic classic techniques.

Among the many applications in this field, I’ve chosen to focus on detecting wildfires using satellite data. In particular, we will investigate the Achaia-Ilia wildfire that happened in Greece during June 2024. The decision to study this event is motivated by the fact that it is fairly recent, and because I found a paper with a good level of accuracy, which we can use to gather relevant information and for comparison. I hope you enjoy reading this post as much as I enjoyed learning the concepts behind it.

This article is accompanied by scripts and a notebook you can find in the burn-area-detection repo.

GIS and Satellites

Applications of earth observation use informative systems called GIS, which stands for Geographic Information Systems. These systems allow connecting data with specific geospatial information. These systems are of paramount importance since Earth Observation (EO) is the process of acquiring observation of the Earth’s surface and atmosphere via remote sensing instruments. Data acquired this way is usually in the form of digital images, which in a computer are nothing but a matrix of numbers, or a numpy array if you are familiar with Python. Data acquired alone is not really useful; it’s just raw material that in this case needs geospatial information to analyze it and use it in real applications.

Observations of the Earth are done in different ways, but the most common one is through satellites in close orbits around us. Acquisition of the images can be obtained in two ways:

• Passive imagery: this approach is based on the observation of the electromagnetic emissions of the Earth’s surface and the atmosphere. These emissions are mainly due to reflection of the sunlight or internal production from vegetation.
• Active imagery: this approach is based on systems composed of a transmitter that sends a specific signal to the Earth and a sensor that receives information of the interaction of the signal with the surface. The time between the signal sent and the one returned, and the intensity, are used to evaluate different properties.

In the context of burn area detection, we will focus on the usage of passive imageries obtained with multi-spectral instruments. Without going too much into detail here, it is important to know what is the electromagnetic (EM) spectrum and the radiation.

The electromagnetic radiation (EMR) is a form of energy, like the gravitational one, that propagates as waves traveling through space. These waves are what constitute the electromagnetic field. Although we don’t see these waves like we do in the ocean, for example, they are constantly present around us, with the Sun being the primary source.

The EMR is associated with energy which is characterized by its frequency. The frequency is measured in Hertz ($Hz = \frac{1}{s}$) and allows us to create the electromagnetic spectrum by classifying radiation into different regions. The colours we see around us are just a small part of the entire spectrum.

Each frequency band is associated with different information. In EO, we take advantage of this by combining different bands together to extract the data we need based on the application.

The multi-spectral instrument allows to collect imagery containing a combination of bands that creates composite images. Based on how these images are composed, we can perform different types of analysis. We can for example use them to highlight specific features or patterns.

The reflectance of the objects is what allows us to study the surface of our planet. It is defined as the fraction of the incident electromagnetic power that is reflected by the object and the one that reaches the body. Remote sensing techniques work by observing what is reflected by the Earth’s surface.

Sentinel-2

For our investigation we will use the data provided by the European Space Agency (ESA) Sentinel-2 mission which are kindly accessible for free. Data is distributed by the Copernicus Data Space Ecosystem (CDSE).

Before diving into the data, it is useful to learn some parameters of a satellite that directly impact our analysis.

The swath of a satellite is the strip on the ground the satellite is able to acquire images from during its orbit. Higher is the swath width and higher is the portion on the ground we can observe with a pass of the satellite. This parameter tends to be inversely proportional with the resolution. Swath can also overlap in adjacent orbits.

• Spatial resolution: one way to assess it is by computing the difference in space between adjacent pixel center on the ground. Very high resolution systems provide a spatial resolution below 5m.
• Spectral resolution: is the analogous of the previous one but for the EMS.

Each satellite in the Sentinel-2 mission carries as a payload a Multi-Spectral Instrument (MSI) capable of sampling 13 bands in the EMS and have a swath width of 290 km.

For Sentinel-2 we have the spatial resolution which depends on the spectral band, and for this reason the acquisition of images for the different bands are different for each spatial resolution. For our analysis we are interested in two spatial resolutions, the 10 m and 20 m, and will not consider the 60 m one:

For the indexes we are going to analyze, we are interested in the following bands:

• Band 4 at 10m for the visible red.
• Band 8 at 10m for the near infrared.
• Band 8a at 20m for the near infrared.
• Band 12 at 20m for the shortwave infrared.

In the 20m spatial resolution we are using the SWIR at band 12 and not 11 because it should be better correlated with burn severity measure.

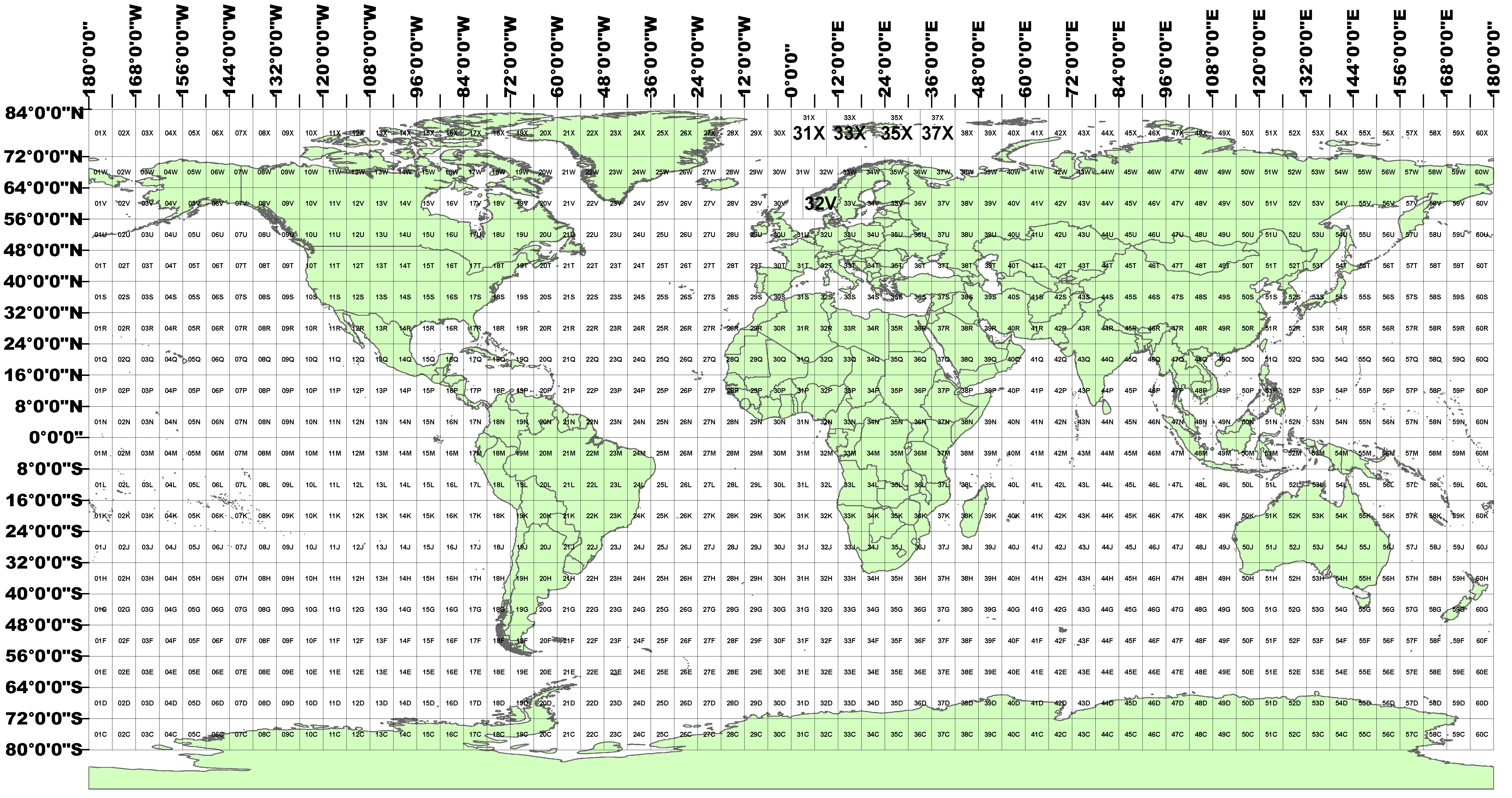

What we are interested in from the products offered for the Sentinel-2 is called granule, or also commonly referred to as tile. A tile is a snapshot for all the spectral bands with a spatial dimension of $110 \: \text{km} \times 110 \: \text{km}$. These tiles are represented using the Universal Transversal Mercator (UTM) reference system to project geographic coordinate in the sphere to a plane reference system, easy and nice to work with. Within this system, the Earth’s surface is divided in different regions like visible in the picture below, and each rectangle is divided into different tiles.

The normalized difference vegetation index

The Normalized Difference Vegetation Index (NDVI) is a metric used to quantify the health and density of vegetation using two electromagnetic bands:

• Red: indicates a high level of chlorophyll.
• Near infrared (NIR): healthy vegetation is characterized by a high reflectance in this band.

The reason behind the composition of this index is that plants absorb solar radiation, the red part, to operate the photosynthesis. In doing so, they re-emit solar radiation in the NIR band.

The formula is as follows:

So, in healthy vegetation we expect to see high absorption in the red band, and high emission in the NIR one, causing the NDVI to be close to 1. More generally, we can interpret the value of the NDVI as reported in the below table.

The normalized burn ratio

The Normalized Burn Ratio (NBR) is an index used to identify burned areas. This index is obtained using two EM bands:

• Near infrared (NIR): healthy vegetation is characterized by a high reflectance in this band.
• Shortwave infrared (SWIR): healthy vegetation is characterized by a low reflectance in this band, while burned areas have a high reflectance percentage. The particularity of this radiation is that it is able to pass through smoke from fires.

As visible from the picture (TODO), the NIR is associated with the band between 760 and 900 nm in the EM spectrum, while the SWIR is the band between 2080 and 2350 nm.

The formula for the NBR is as follows:

where the denominator allows to normalize the values in the range $[-1, +1]$. What is interesting to appreciate is how this index uses a difference in the value of two different bands.

The NBR is used in a differential form to evaluate the severity of a wildfire by evaluating the delta between the NBR pre and post fire. This is particularly useful because it allows us to discriminate between recently burned area and bare ground, since both are associated with a low value of the NBR.

The dNBR index is particularly sensitive to the combination of location and delta of time. In location like tropical areas, vegetation regrowth is particularly fast, and for this reason it is important to take a post fire snapshot not too far in time to have a meaningful measure.

Based on the value of the dNBR, we can assess the severity using the following table:

The burn severity is a measure of how the fire intensity affected the functioning of the ecosystem in the area affected.

Download data

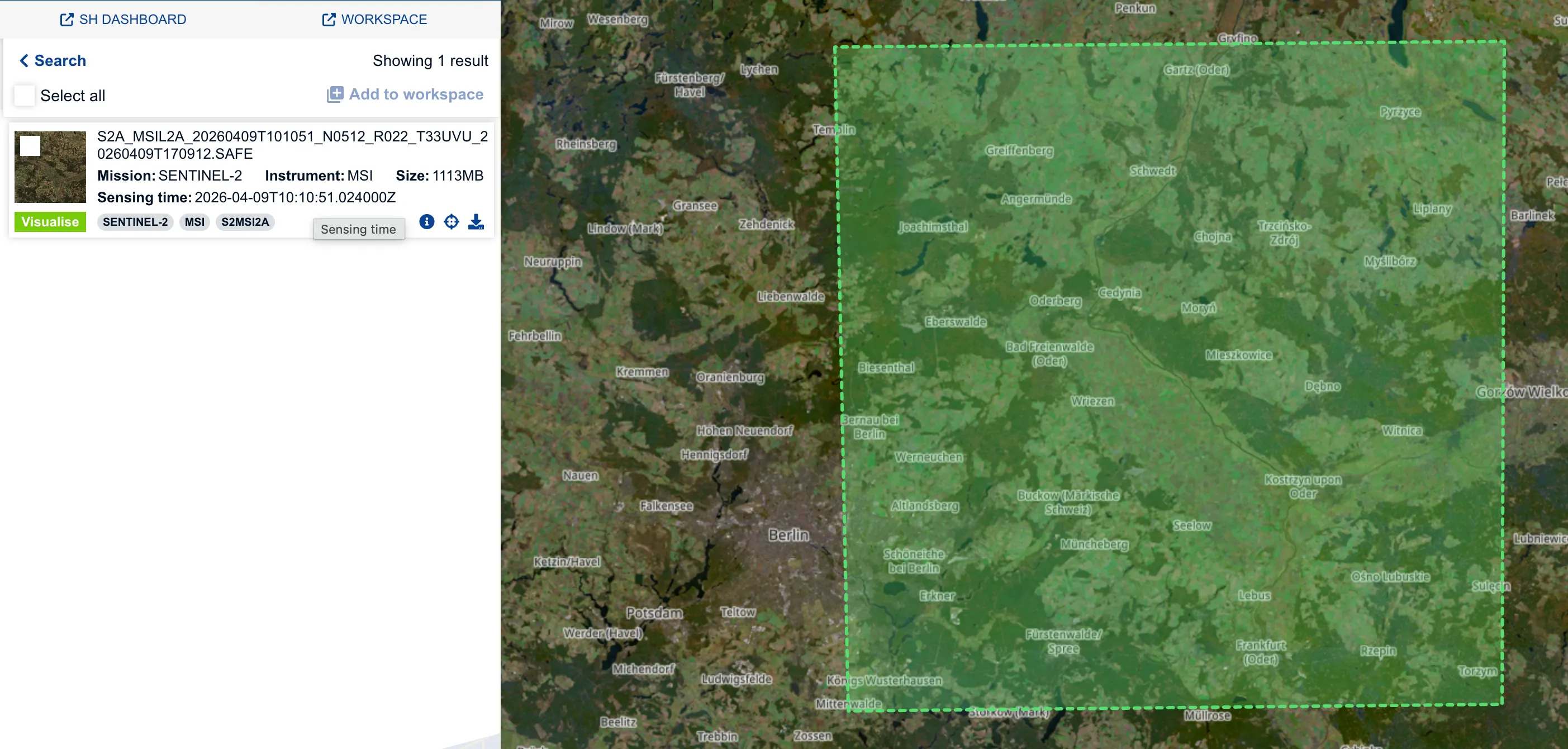

The most direct approach to get Sentinel-2 data is through the Copernicus browser. If you are new to EO like me, it will not be very intuitive how to use the website, but I do believe it is very informative and useful to play around with the manual download of the data before passing to a more easy approach. If you like, there are also videos showing how to use the Copernicus browser, but I haven’t watched them, so, if you do, please let me know how they are!

If you want to download the same tile I used in the indexes-introduction notebook, please copy&paste this string into the Search Criteria and then press Search:

S2A_MSIL2A_20260409T101051_N0512_R022_T33UVU_20260409T170912

Please notice that this tile is not associated with any wildfire but was mainly used to learn how to navigate the Copernicus browser (and refresh some Python…).

If you are interested in understanding what this id means, please refer to the S2 products web page, but is the unique identifier in space, time, and boundary condition of the image of the tile we will study. The only other interesting thing to mention here, is that the part T33UVU indicates the specific tile we want, and you can find its position in the tiling system picture by looking for the 33U rectangle. Also, we are using the 2A product because provides images with atmospheric correction already applied. Images at Top of Atmosphere (TOA) are provided with the 1C product.

From the left side you download the zip file containing all the data associated with this scene.

Unzipping the file will give you a .SAFE folder, which stands for Standard Archive Format for Europe. You can then find all the band images represented with the .jp2 format which is the newer standard of the old .jpg one, designed with the support for georeferencing in mind.

A better alternative for downloading data is via API. In this context, the industry maturated creating a common standard to store and provide geospatial information, and this standard is the SpatioTemporal Asset Catalog (STAC). In this language, we refer to a specific asset, like a band image, as an item. An item is stored in the standard GeoJSON format.

In understanding how to use the API, we will download a tile containing the wildfire happened in Achaia-Ilia. From now on, I strongly recommend to follow along using the greece-achaia-ilia-wildfire notebook to understand how each step is implemented.

From an image in the paper we can get the coordinate in the Degree Minutes Second (DMS) format:

In order to use them, we first have to convert them into the Decimal Degree (DD) coordinate system. These values can be used to create a bounding box, which is used in GeoJSON to refer to the geometry of the tile considered. The 4 values used represents the values of the constant longitudes and latitudes containing the tiles in this order: [west coord, north coord, east coord, south coord].

The STAC catalog for the Sentinel-2 data is stored into an S3-like bucket managed by Copernicus and accessible at the host eodata.dataspace.copernicus.eu. To connect with this host, we use a client capable of interacting with STAC API, which is for example the pystac_client. This step is abstracted away in the notebook by using a simple class which is used this way:

client = SentinelStacClient(url)

Since our goal is to assess the wildfire intensity, we will use the dNBR, and so we will need to find one image pre fire and one image post fire. These two dates are taken from the paper and are:

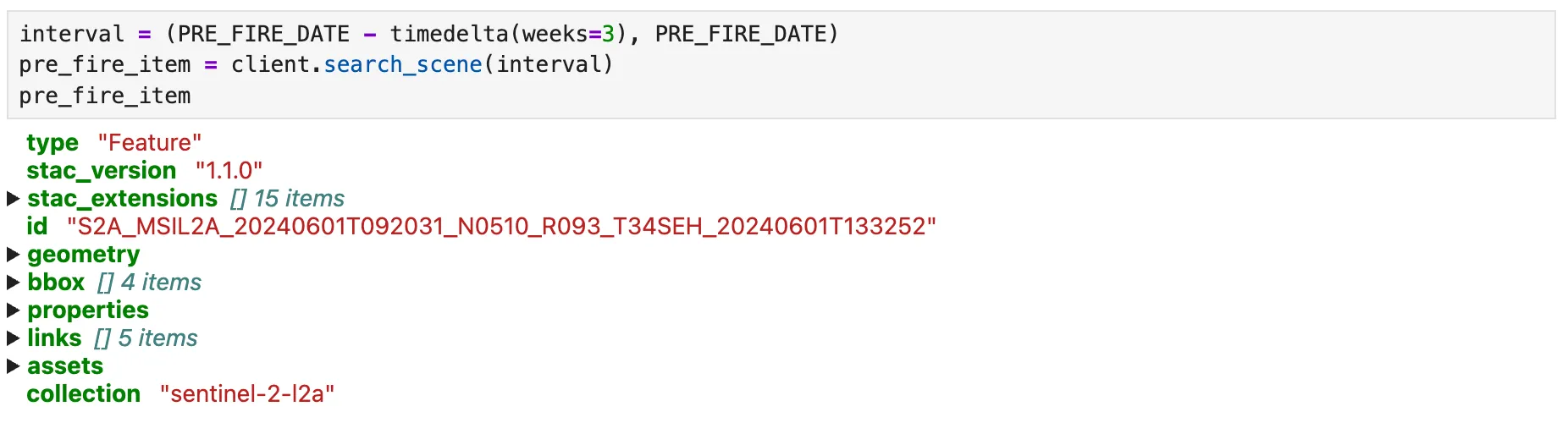

At this point, we can query the catalog to get an item that satisfy our constraints. In this case, we set just the bounding box, cloud condition, and the time interval. Below is reported an example of the GeoJSON information associated with a STAC item.

Now, if we just try to get an image for the post-fire situation, we could end up in the situation where the returned tile is just partly populated because the result of a not full swath on the bbox specified. To avoid this situation, we can refine our search by specifying additional query parameters. In my case, I realized that I was working with an almost empty tile just after looking how bad was the severity score obtained (:D). After that, I started also plotting the two tiles on a map to visualize if the item has the expected shape.

At this point, we didn’t actually get the tile with band information. What the catalog is doing is just providing an href we can then follow to download the data we want. Here another important aspect, even though we can access it to query information via the API, to also download the data we need to properly set the environment variables which will be used by the boto3 system. The variables are then loaded in the context with:

os.environ["AWS_S3_ENDPOINT"] = "eodata.dataspace.copernicus.eu"
os.environ["AWS_VIRTUAL_HOSTING"] = "FALSE"
os.environ["AWS_ACCESS_KEY_ID"] = os.getenv("ACCESS_KEY")
os.environ["AWS_SECRET_ACCESS_KEY"] = os.getenv("SECRET_KEY")

where the virtual hosting flag is needed to properly resolute the href path which for Copernicus does not follow the classic s3 structure.

The download process is done under the hood using the rasterio library. An example of how it is done in the notebook for the band 8a with 20 m spatial resolution is:

b8a_20m_pre, _ = client.read_band(pre_fire_item.assets["B8A_20m"].href)

Rasterio is a powerful tool used in GIS to read the standard format used for geospatial applications called GeoTIFF and to create handy numpy arrays out of them. GeoTIFF stands for Geographic Tagged Image File Format and defines the requirements and how to encode images along with geographic information.

It is just that, nothing too complex. We load the required environment variables into scope, and then boto3 and rasterio do the job for us. The abstraction provided returns directly the raster values of the selected band. Below the snippet of the code that read the raster values, convert them to float, and if requested, downsample the pixel values:

f.read(1, out=out_shape, out_dtype=np.float64)

A raster is the name given to a grid of values which represent pixel values. In the case of Sentinel-2 band, the values in the raster are a digital representation with 16 bits of the surface reflectance. You can read more about it in the product page of the Sentinel-2 level 2A product if you like.

Given the rasters of the band we need, we can compute the pre and post fire NBR values.

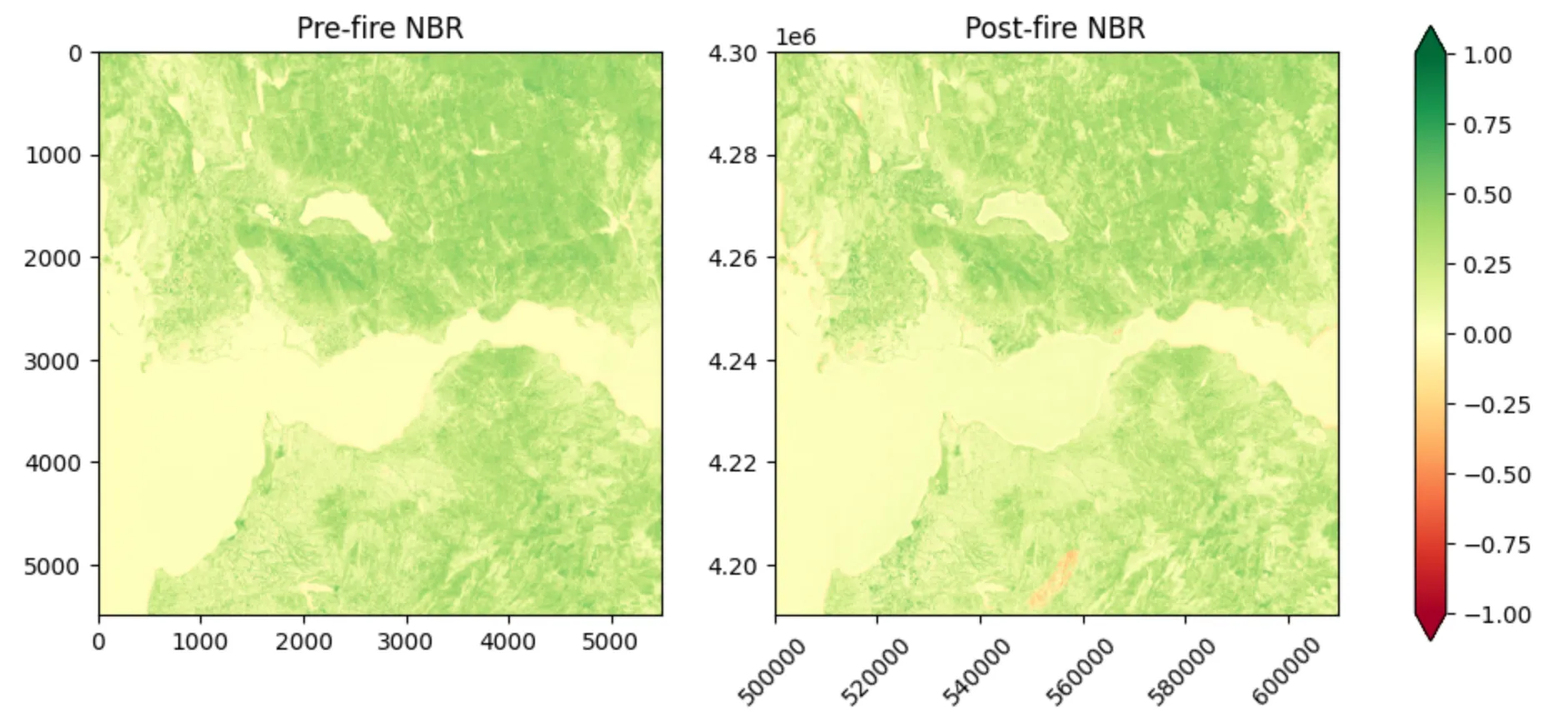

As we can see, in the post fire image we have a region in the lower-central part which has pixel values in the red part of the cmap. This is the region where the wildfire happened.

Notice that the picture intentionally report two different axis. This is not because the values are defined on two different tiles, obviously, but because they are using two different reference systems. In the left image, we use the array reference system, which is positional in the array itself. In the right image, we perform a transformation to bring each pixel on its real geographic position. More technically, what we do is an affine transformation of the points, which is nothing but a combination of a linear transformation plus a translation of the raster values. Basically, we move the raster on the correct space position and stretch it to the correct size while preserving the structure.

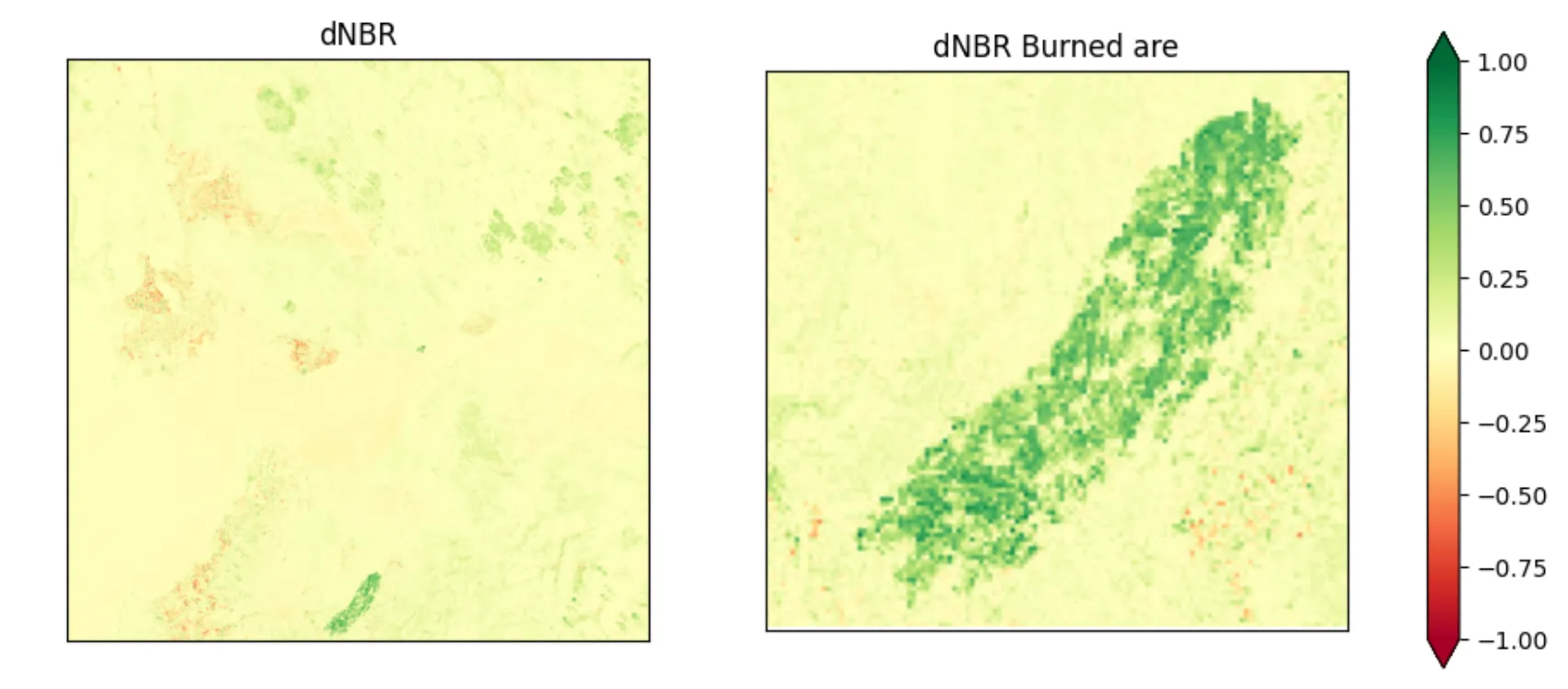

We can have a better visualization by computing the delta of the NBR:

We can now clearly visualize the section of the Earth’s surface that was affected by the fire. Comparing this image with the one of the paper, we can confirm that we correctly applied the indexes to perform burn area detection with classic methods (in a qualitative not quantitative way).

Despite we were able to discover the burned area, we don’t have a clear overview of the severity in each of the points. We can improve the visualization by classifying each of the pixel into one of the 5 severity groups reported in the severity table. To do so in python:

conditions = [
    dnbr_cut < 0.099,
    (dnbr_cut >= 0.1) & (dnbr_cut <= 0.269),
    (dnbr_cut >= 0.27) & (dnbr_cut <= 0.439),
    (dnbr_cut >= 0.44) & (dnbr_cut <= 0.659),
    dnbr_cut > 0.7,
]
values = [0, 1, 2, 3, 4]

seg = np.select(conditions, values, default=0)

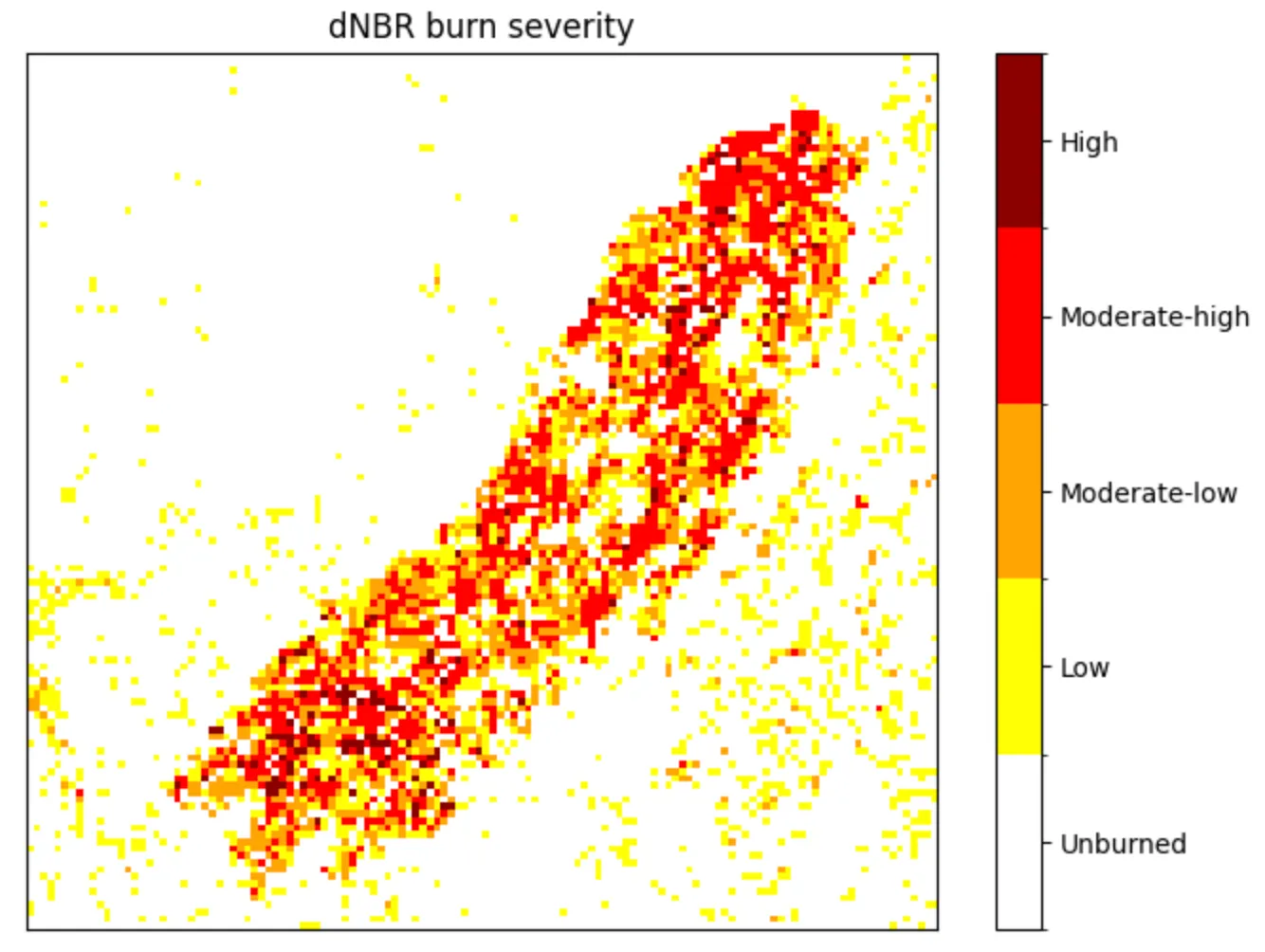

Now, we can plot the created segmentation:

Conclusion

Let’s wrap up what we did and what we learned in this first post about EO analysis. We touched a bit on how remote sensing is performed and what electromagnetic bands are. From these definitions, we discovered that different spectral bands allow us to gain insight into the surface being observed. The images generated are used to define indexes that help scientists understand the status of the Earth’s surface. With a basic understanding of the context, we moved into the data part, and understood how to gather and manipulate the data directly from satellite observations. We then used the data of the NIR, Red, and SWIR at different spatial resolutions to compute the indexes and identify an area affected by a wildfire in Greece. This was a nice journey into the classic techniques used in wildfire monitoring and prevention. It is important to note that we worked with just two snapshots of a specific tile, but in real life we should work with streams of data and time series to understand where a fire is starting without having an already labeled dataset as we did here. Anyway, this was just the first step; in the next post we will investigate more advanced methods based on convolutional neural networks.

Final consideration

• Earth Lab mentions that it is better to mask out the water to avoid false positive. I don’t find it an issue in the analyzed scene. This is reported also by castro-melgarWildfiresEarlySummer2025, which addresses the issue by using the Normalized Difference Water Index (NDWI) mask.

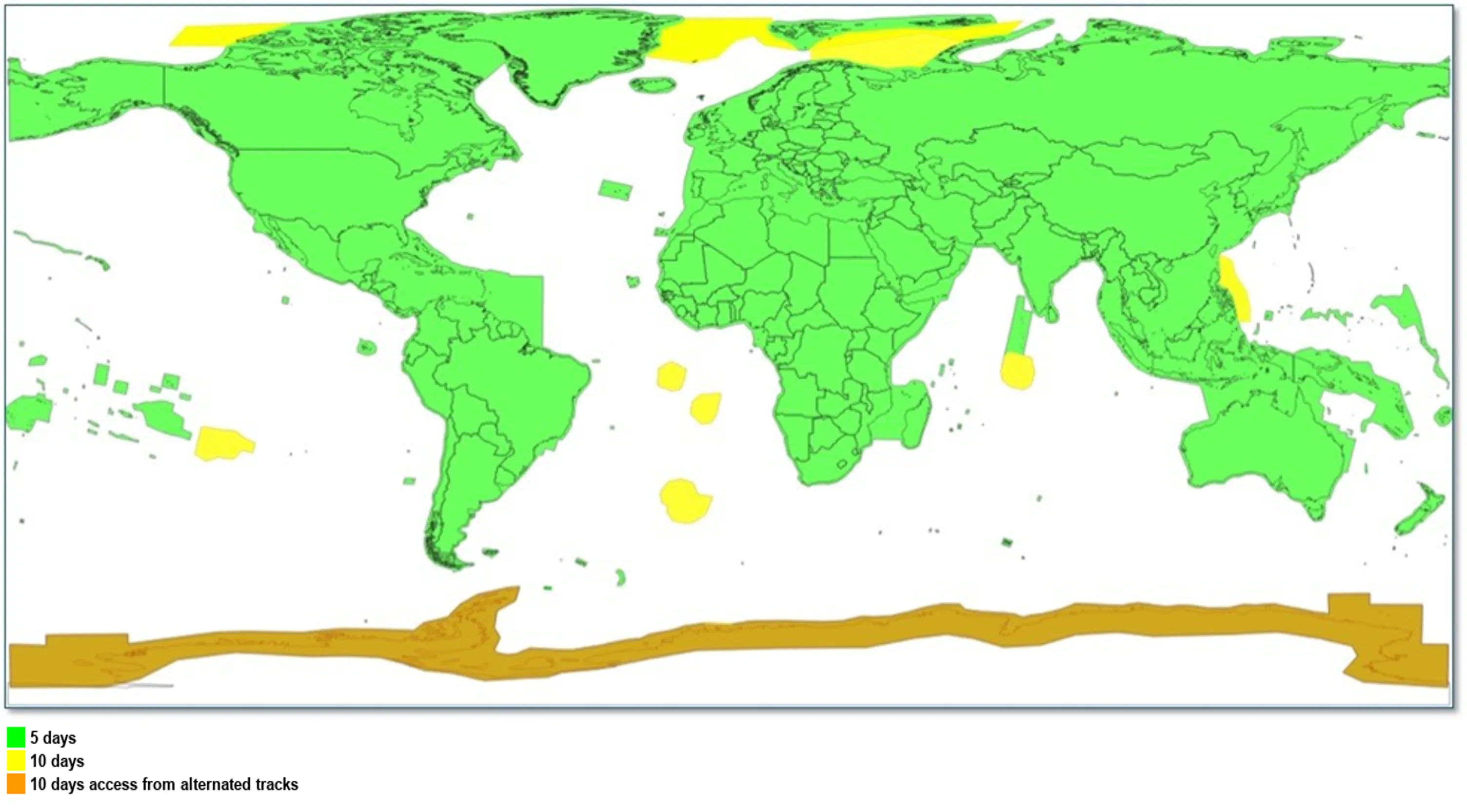

• Given that the Sentinel-2 mission is composed by 2 satellites with a 10-days cycle, we could have an image of the same tile every 5 days. However, due to possibility of cloud coverage, or orbit drifting, this is not guaranteed.
